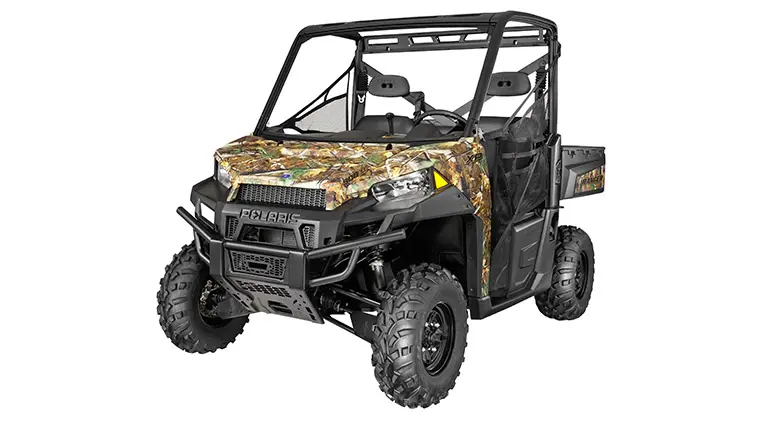

RANGER XP® 900 POLARIS PURSUIT® CAMO

Engine & Drivetrain

Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
875cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.5 x 54 x 11.5 in (93 x 137 x 29 cm)
Box Capacity
1,000 lbs (453.6 kg)
Estimated Dry Weight
1,325 lb (601 kg)
Fuel Capacity
10 gal (37.9 L)
Ground Clearance
12 in (30.5 cm)
Hitch Towing Rating
2,000 lb (907 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Overall Vehicle Size (L x W x H)
116.5 x 60 x 76 in (296 x 152 x 193 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Front Suspension
Dual A-Arm 10 in. (25.4 cm) Travel
Instrumentation
Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (3)
Lighting
55W low/ 60W high, LED Tail
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel

Tires / Wheels

Electronic Power Steering
Not Equipped
Front Tires
25 x 10 -12; 489
Rear Tires
25 x 11-12; 489
Wheels
Stamped Steel
