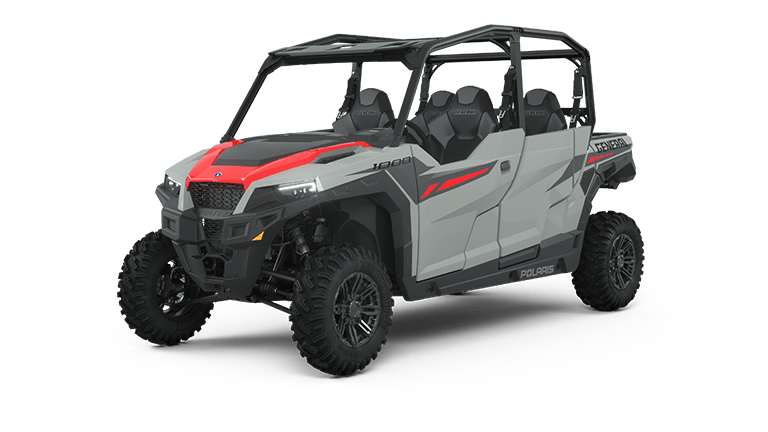

GENERAL 4 1000 Sport Ghost Gray
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
True On-Demand AWD/2WD/ VersaTracTurf Mode
Engine Braking System (EBS)
EDA: Engine Deceleration Assist
Engine Type
4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
100 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
27.5 x 43.1 x 11.6 in (69.8 x 109 x 29.5 cm)
Box Capacity
600 lb (272 kg) Rear Dumping Box
Estimated Dry Weight
1,764 lb (800 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
12 in (30.5 cm)
Hitch Towing Rating
1500 lb (680 kg)
Overall Vehicle Size (L x W x H)
150.2 x 62.5 x 75 in (381.5 x 158.7 x 190.5 cm)
Payload Capacity
1,280 lb (580 kg)
Person Capacity
4
Wheelbase
113 in (287 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission
Technology
Audio
Not Equipped, Accessory Options Available
Cargo System
Lock & Ride®
Doors
Full Doors Standard
Electronic Power Steering
High Output EPS
Hitch Type
Standard 2 in (5.08 cm) Receiver
Instrumentation
Dual-Sweep Analog Dials with 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
LED Headlight w/Accent & LED Taillights
Other Standard Features
Adjustable Tilt Steering
Seat Type
Bolstered Bucket Seats with Driver Seat Slider and Height Adjustable Seat Belts
Wheels & Tires
Front Tires
27 x 9-14; Dirt Commander
Rear Tires
27 x 11-14; Dirt Commander
Wheels
14 in. (35.6 cm) Aluminum
Suspension
Electronic Suspension Control System
Not Equipped
Front Shocks
FOX 2.0 PODIUM QS3
Front Suspension
Dual A-Arm with Stabilizer Bar 12.25 in (31.1 cm) Travel
Rear Shocks
FOX 2.0 PODIUM QS3
Rear Suspension
Dual Arm IRS with Stabilizer Bar 13.2 in (33.5 cm) Travel
