Sportsman X2 570 Onyx Black SPECIFICATIONS

Find specifications below for the 2026 Polaris Sportsman X2 570 Onyx Black ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
567 cc
Drive System Type
One-touch on-demand AWD/2WD/Turf
Driveline Features
Includes: engine braking system (EBS), Active Descent Control (ADC)
Engine Type
ProStar 4-stroke DOHC single cylinder
Fuel System/Battery
Electronic fuel injection / 340 CCA
Horsepower
44
Transmission/Final Drive
Automatic PVT P/R/N/L/H in-line shifting

Dimensions

Bed Box Dimensions (L x W x H)
37.5 x 19.5 x 6.5" (95 x 49.5 x 16.5 cm)
Estimated Dry Weight
928 lbs. (421 kg)
Front/Rear Rack Capacity
90 lbs. (41 kg) / 400 lbs. (180 kg)
Fuel Capacity
6.75 gal (25.5 L)
Ground Clearance
11.5" (29 cm)
Hitch Type
Standard 1.25" (3.2 cm) receiver
Overall Vehicle Size (L x W x H)
92 x 49 x 51" (234.8 x 123.8 x 130.6 cm)
Payload Capacity
705 lbs. (320 kg)
Person Capacity
2
Seat Height
35.35" (89.8 cm)
Towing Capacity
1,350 lbs. (612 kg)
Wheelbase
56" (143.2 cm)

Brakes

Front/Rear Brakes
Single lever, 4-wheel hydraulic disc with hydraulic rear foot brake
Parking Brake
Park in-transmission / lockable hand lever

Technology

Connected Vehicle Services
Not equipped
Touch Screen Display
Not equipped, accessory options available

Wheels & Tires

Front Tires
26 x 8-14; Duro
Rear Tires
26 x 10-14; Duro
Wheels
14" (35.6 cm) aluminum

Suspension

Front Suspension
Sealed MacPherson strut with 8.2" (20.8 cm) travel
Rear Suspension
Sealed dual A-arm, IRS, 9.5"(24.1 cm) Travel

Exterior Features

Cargo System
5 gal (18.9 L) front dry storage, Lock & Ride dump box rails & rear racks, tie-down rails in dump box
Vehicle Protection
Front-trail bumper, front rack extender, bed box, painted plastics, front and rear A-arm guards
Winch
3,500 LB Winch with synthetic rope and Auto Stop

Lighting & Electrical

Electrical System
12-volt power plug, in-pod trickle charging port, pre-wired for hand and thumb warmers
Lighting
LED pod high beam, LED low-beam headlights, dual brake lights/taillights

Comfort & Convenience

Driver Instrumentation
All-digital gauge: geofencing, speed limiter, speedometer, odometer, tachometer, two tripmeters, hour meter, gear indicator, fuel gauge, AWD indicator, volt meter, coolant temperature, hi-temp light
Electronic Power Steering
Multi-select EPS
Polaris P.A.S.S. Anti-Theft System
Equipped
Ride Control
Ride Control (easy-effort throttle, speed limiting, geofencing, PIN-activated security system), 3 drive modes
Seat Type
Saddle seat + convertible pop-up passenger seat
Speed Limiting
Equipped
44
HP
49"
WIDTH
11.5"
GROUND CLEARANCE

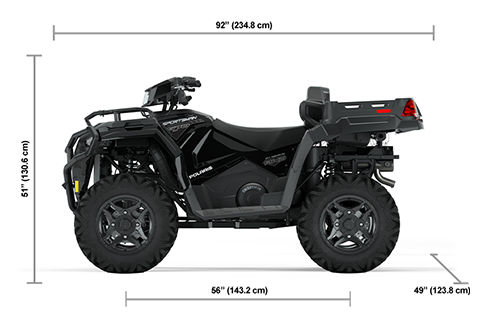

Side view of the Onyx Black 2026 Polaris Sportsman X2 570 with height, width and length dimensions.
