SPORTSMAN 110 VELOCITY BLUE SPECIFICATIONS

Find specifications below for the 2026 Polaris Sportsman 110 Velocity Blue youth ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

Engine & Drivetrain

Cooling
Air
Cylinders Displacement
112 cc
Drive System Type
2WD
Engine Type
4-stroke single cylinder
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT F/N/R; O-ring chain

Dimensions

Bed Box Dimensions (L x W x H)
N/A
Box Capacity
N/A
Estimated Dry Weight
289 lbs. (131 kg)
Front/Rear Rack Capacity
15 lbs. (6.8 kg)
Fuel Capacity
2.0 gal (7.7 L)
Ground Clearance
3.5" (8.9 cm)
Overall Vehicle Size (L x W x H)
61.25 x 36.75 x 38.5" (155.6 x 93.3 x 97.8 cm)
Payload Capacity
180 lbs. (81.7 kg)
Person Capacity
1
Seat Height
27" (68.6 cm)
Wheelbase
41.5" (105.4 cm)

Brakes

Front/Rear Brakes
4-wheel drum
Front/Rear Brakes
Rear mechanical drum
Parking Brake
Single handlebar mounted, mechanical locking

Wheels & Tires

Front Tires
19x7-8 Duro
Rear Tires
18 x 9.5-8 Duro
Wheels
8" stamped steel

Suspension

Front Suspension
Single A-Arm with 5" (12.7 cm) Travel
Rear Suspension
Mono-shock swingarm with 6" (15.2 cm) travel

Lighting & Electrical

Lighting
Dual LED bulb front running lights, single rear brakelights/taillights.

Comfort & Convenience

Additional Safety Features
Safety flag, parent-adjustable speed limiter, free online safety training, safety tether
Driver Instrumentation
N/R light
Ride Control
Not equipped
Speed Limiting
The speed of this vehicle is restricted to under 15 mph (24 km/h) at manufacture. The speed-limiting device may be adjusted by supervising adults when they determine that their child is capable of handling additional speed. The unrestricted top speed for this model is 30 mph (48 km/h)
36.75"
WIDTH
3.5"
GROUND CLEARANCE
10+
AGE

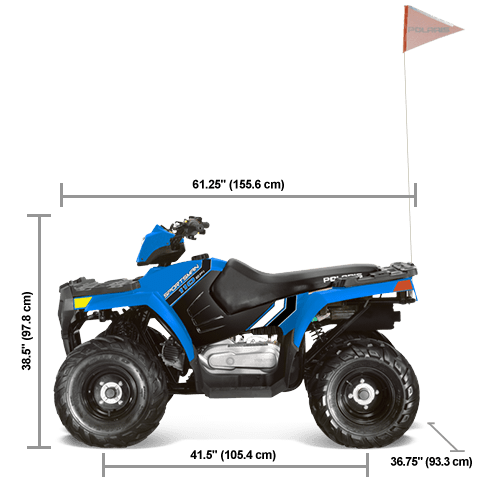

Side view of the Velocity Blue 2026 Polaris Sportsman 110 with height, width and length dimensions.
