COMPARE RZR TRAIL MODELS
Explore RZR trim levels to find the right one for you. From standard to ultimate—and everything in between—Polaris offers a range of options to meet your needs. Use this guide to find your ideal ride.
Aller à
GUIDE DES GARNITURES
Sportsman 500
CARACTÉRISTIQUES :
• Largeur de 127 cm (50 po)
• Phares à DEL
• Servodirection
• Demi-portières
• Pneus de 66 cm (26 po), jantes en acier
• Inserts RZR Fang colorés
• Amortisseurs à double tube ZF Sachs
RZR Trail Ultimate
CARACTÉRISTIQUES DE LA GARNITURE SPORT, PLUS :
• Écran RIDE COMMAND de 7 po (17,8 cm)
• Système audio Rockford Fosgate® Stage 2
• Toit sportif en polycarbonate
• Amortisseurs FOX 2.0® Podium X
• Mode gazon
• DEL d’accentuation RZR Fang
• Jantes en aluminium
Specifications
Cooling
Cylinders Displacement
Drive System Type
Driveline Features
Engine Type
Fuel System/Battery
Horsepower
Transmission/Final Drive
Bed Box Dimensions (L x W x H)
Box Capacity
Estimated Dry Weight
Fuel Capacity
Ground Clearance
Hitch Type
Overall Vehicle Size (L x W x H)
Payload Capacity
Person Capacity
Towing Capacity
Wheelbase
Front/Rear Brakes
Parking Brake
Audio System
Connected Vehicle Services
Rear Camera
Security
Touch Screen Display
Front Tires
Rear Tires
Tire Ply Rating
Wheels
Electronic Suspension Control System
Front Shocks
Front Suspension
Rear Shocks
Rear Suspension
Cargo System
Door Type
Vehicle Protection
Winch
Electrical System
Lighting
Cab Components
Drive Modes
Driver Instrumentation
Electronic Power Steering
Heat and/or Air Conditioning
Ride Control
Seat Type
Speed Limiting
Steering

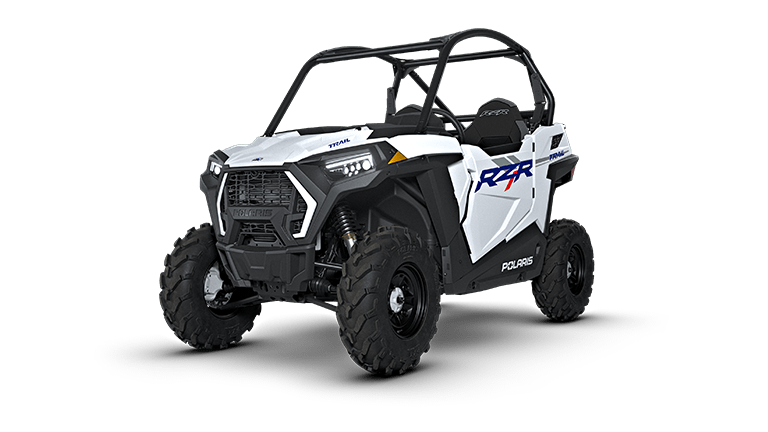

RZR Trail Sport White Lightning
À partir de
20 599 $
(CA)
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. Plus destination charge and set-up. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
875 cc
Drive System Type
True on-demand AWD/2WD
Driveline Features
Yes
Engine Type
4-stroke DOHC twin cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
75
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H)
20.7 x 37 x 7.9" (52.5 x 94 x 20 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,255 lbs. (569 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
11" (27.9 cm)
Hitch Type
Standard 1.25" (3.2 cm) receiver
Overall Vehicle Size (L x W x H)
110.9 x 50 x 67.9" (282 x 127 x 172.5 cm)
Payload Capacity
740 lbs. (335.7 kg)
Person Capacity
2
Towing Capacity
1,500 lbs. (680 kg)
Wheelbase
79" (200.7 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped
Rear Camera
Not equipped
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
Not equipped
Front Tires
26 X 8 X 12"
Rear Tires
26 X 9 X 12"
Tire Ply Rating
3-Ply
Wheels
Stamped steel
Electronic Suspension Control System
Not equipped
Front Shocks
ZF twin tube
Front Suspension
Dual A-arm with stabilizer bar and 10" (25.4 cm) wheel travel
Rear Shocks
ZF twin tube
Rear Suspension
Dual A-arm with stabilizer bar and 10" (25.4 cm) wheel travel
Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Not equipped
Winch
Not equipped
Electrical System
560-W Charging System @ 6000 RPM, 3-Position Pulse Bar
Lighting
Signature white LED low/high Red LED tail/brake lights
Cab Components
Half doors
Drive Modes
Not equipped
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information center: user-selectable blue/red backlighting & brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet + 12V power plug
Electronic Power Steering
Equipped
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with standard driver and passenger seat sliders (tool required for adjustment on driver and passenger seat)
Speed Limiting
Not equipped
Steering
Adjustable tilt steering
RZR Trail Ultimate White Lightning
À partir de
24 499 $
(CA)
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. Plus destination charge and set-up. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
875 cc
Drive System Type
High-performance true on-demand AWD/2WD/VersaTrac Turf Mode
Driveline Features
Yes
Engine Type
4-stroke DOHC twin cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
75
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H)
20.7 x 37 x 7.9" (52.5 x 94 x 20 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,314 lbs. (596 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
11" (27.9 cm)
Hitch Type
Standard 1.25" (3.2 cm) receiver
Overall Vehicle Size (L x W x H)
110.9 x 50 x 67.9" (282 x 127 x 172.5 cm)
Payload Capacity
740 lbs. (335.7 kg)
Person Capacity
2
Towing Capacity
1,500 lbs. (680 kg)
Wheelbase
79" (200.7 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Rockford Fosgate® Stage 2 audio
Connected Vehicle Services
Not equipped
Rear Camera
Rear camera
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
7" Display powered by RIDE COMMAND, featuring built‑in GPS navigation with topographic mapping, Group Ride (cell‑based or GPS‑based) with messaging, ride tracking, configurable gauges, waypoints, help alerts, AM/FM & weather radio, Bluetooth® audio & USB smartphone connectivity, and in‑vehicle communications capability with optional Bluetooth® headsets.
Front Tires
26 X 8 X 12"
Rear Tires
26 X 9 X 12"
Tire Ply Rating
3-Ply
Wheels
Cast aluminum
Electronic Suspension Control System
Not equipped
Front Shocks
FOX® 2.0 PODIUM X
Front Suspension
Dual A-arm with stabilizer bar and 10" (25.4 cm) wheel travel
Rear Shocks
FOX® 2.0 PODIUM X
Rear Suspension
Dual A-arm with stabilizer bar and 10" (25.4 cm) wheel travel
Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Not equipped
Winch
Not equipped
Electrical System
560-W Charging System @ 6000 RPM, 3-Position Pulse Bar
Lighting
Signature RZR Fang Accent Lighting, signature white LED low/high Red LED tail/brake lights
Cab Components
Half doors, Roof
Drive Modes
Not equipped
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information center: user-selectable blue/red backlighting & brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet + 12V power plug
Electronic Power Steering
Equipped
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with standard driver and passenger seat sliders (tool required for adjustment on driver and passenger seat)
Speed Limiting
Not equipped
Steering
Adjustable tilt steering
