MODEL ARCHIVE

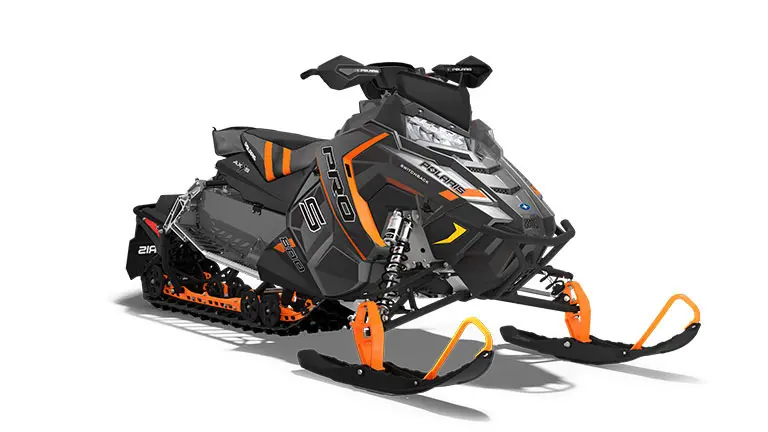

800 Switchback® PRO-S LE

Engine and Drivetrain

Bore x Stroke
85 mm x 70 mm
Cylinders Displacement
2 - 795 cc
Disc Brake Type
AXYS® Radial
Drive System Type
Chaincase
Drive/Driven Clutch
P-85 / TEAM® LWT
Engine Type / Cooling
Liquid Cooled
Exhaust
Single, 3 Stage VES w/ Smart Actuator
Fuel System
Cleanfire® Injection
Ignition
Cleanfire® 3D

Dimensions

Estimated Dry Weight
442 lb (201 kg)
Fuel Capacity
11.5 gal (43.5 L)
Overall Height
49.125 in (124.7 mm)
Overall Length
142 in (360.6 cm)
Overall Width
46.5 in (118.1 cm)
Person Capacity
1
Ski Center Distance
39 - 40 - 41 in (99.1 - 101.6 - 104.1 cm)

Suspension

Front Shocks
Walker Evans Hi-Lo Speed Comp. Adj. Piggyback
Front Suspension
AXYS® Front Suspension
Front Track Shock
WER® Comp. Adj. Piggyback Needle
Front Travel
9 in (22.9 cm)
Rear Suspension
AXYS® RMK®
Rear Track Shock
WER® Hi-Lo Speed Comp. Adj. Piggyback
Rear Travel
13.4 in (34 cm)
Ski Type
PRO-STEER
Track Width / Length / Height (in)
15 X 137 X 1.352 in COBRA

Features

12V Outlet / RCA
Accessory
Color / Graphics
Limited Edition
Electric Start
LE Option
Fuel Gauge
Mechanical
Hand & Thumb Warmers
Standard Adjustable
Handlebar Type
One Piece w/ Hooks
Heated Passenger Grips
LE Option
Mirrors
Accessory
Rear Rack/Tow Hitch
N/A
Reverse
PERC®
Riser Type
ROX™ Adjustable
Seat Type
AXYS® Performance
Security System
Option / Accessory
Speedometer
LE Option
Storage System
Standard
Tachometer
LE Option
Temp/Low Oil Light
LE Option
Windshield
LE Option
