RZR Trail S 900 Sport Zenith Blue Specifications

Find specifications below for the 2025 RZR Trail S 900 Sport Zenith Blue side-by-side. Specs include hitch type, towing capacity, payload capacity, engine type, horsepower, ground clearance, drive system type, fuel capacity, suspension, instrumentation, lighting, bed box dimensions and capacity, cargo system and wheels and tires.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
875cc
Drive System Type
True On-Demand AWD/2WD
Engine Braking System (EBS)
Yes
Engine Type
4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
75 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
20.7 x 37 x 7.9 in (52.5 x 94 x 20 cm)
Box Capacity
300 lb (136.1 kg)
Estimated Dry Weight
1283 lb (582 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
12.5 in (31.8 cm)
Hitch Towing Rating
1500 lb (680.4 kg)
Overall Vehicle Size (L x W x H)
110.9 x 60 x 69.3 in (282 x 152.4 x 176 cm)
Payload Capacity
740 lb (335.7 kg)
Person Capacity
2
Wheelbase
79 in (200.7 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Audio
Not Equipped, Accessory Options Available
Cargo System
Lock & Ride®
Doors
Full Doors
Electronic Power Steering
Yes
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
Dual-Sweep Analog Dials with 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet + 12V Power Plug
Lighting
White LED Low/High & Red LED Tail/Brake Lights
Other Standard Features
Adjustable Tilt Steering
Seat Type
Bolstered Bucket Seats with Standard Driver & Passenger Seat Sliders (Tool Required for Adjustment on Driver & Passenger Seat)

Tires / Wheels

Front Tires
27 x 9-12
Rear Tires
27 x 11-12
Wheels
Cast Aluminum

Suspension

Electronic Suspension Control System
Not Equipped
Front Shocks
ZF Twin Tube
Front Suspension
Dual A-Arm with Stabilizer Bar and 12.25 in (31.1 cm) Wheel Travel
Rear Shocks
ZF Twin Tube
Rear Suspension
Dual A-Arm with Stabilizer Bar and 13.2 in (33.5 cm) Wheel Travel
75
HP
60"
WIDTH
12.5"
GROUND CLEARANCE

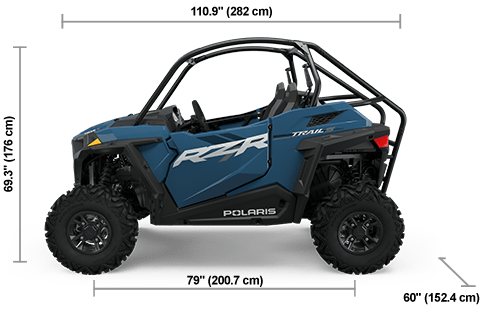

Side view of the Zenith Blue 2025 Polaris RZR Trail S 900 Sport with height, width and length dimensions.
