RZR XP 1000 Trails & Rocks Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
Xtreme Performance True On-Demand Close Ratio AWD/2WD with Enhanced Low Gear Throttle Driveability
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
110 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H with Reduced L Gear
Dimensions
Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
1,573 lb (715 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
14.5 in (36.8 cm)

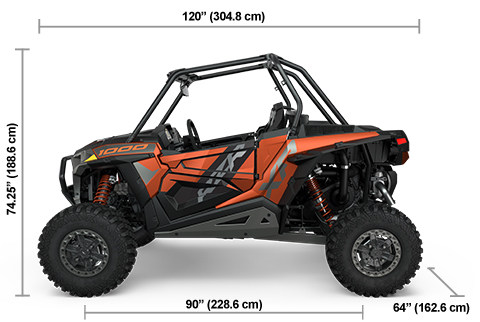

Overall Vehicle Size (L x W x H)
120 x 64 x 74.25 in (304.8 x 162.6 x 188.6 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
90 in ( 228.6 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission
Additional Specifications
Cargo System
Lock & Ride®
Doors
Bowed Full Doors
Electronic Power Steering
Standard
Hitch Towing Rating
N/A
Hitch Type
Not Equipped
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
Front Blacked Out White LED Low/High w/ Accent Lights & Red LED Tail / Brake Lights
Other Standard Features
High Visibility Front Fender Flares, 4,500 lb Polaris Winch with Dash Switch, Front Bumper & Rock Sliders, Rear View Mirror
Seat Type
Bolstered Bucket Seats with Driver Seat Slider and Retractable Click-6 Harnesses
Tires / Wheels
Front Tires
30 X 10 -14; Pro Armor Crawler XG
Rear Tires
30 X 10 -14; Pro Armor Crawler XG
Wheels
Cast Aluminum Beadlock
Suspension
Electronic Suspension Control System
N/A
Front Shocks
2" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
High Clearance Lower Control Arms, Dual A-Arm and 20.5 in (52.07 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel
Rear Shocks
2.5" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
High Clearance Radius Rods, Trailing Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel
110
HP
64"
WIDTH
14.5"
GROUND CLEARANCE
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
