RZR Pro R 4 Ultimate Launch Edition Lifted Lime Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
1997cc
Drive System Type
Pro Performance True 2WD/4WD/4WD Lock
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Inline Four Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
225 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
29.5 x 23.8 x 8.1 in (75 x 60.5 x 20.6 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
2,480 lbs (1,124.91 kg)
Fuel Capacity
12.30 gal (46.56 L)
Ground Clearance
16 in (40.6 cm)
Hitch Towing Rating
N/A

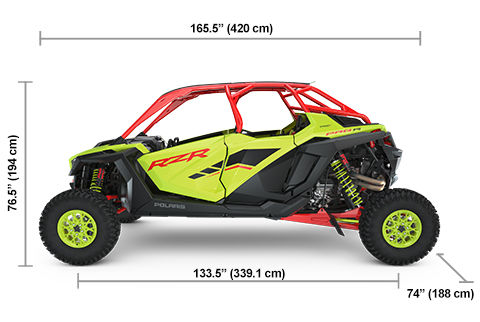

Overall Vehicle Size (L x W x H)
165.5 x 74 x 76.5" (420 x 188 x 194 cm)
Payload Capacity
900 lb (408 kg)
Wheelbase
133.5 in (339.1cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers; Aluminum Top Hat Rotor
Parking Brake
Park In-Transmission
Additional Specifications
Cargo System
Lock & Ride; Convertible Fold Flat rear seat storage with integrated tie downs points, 27.7 x 52.8 x 19.5" (70.4 x 134.1 x 49.53 cm) Factory Equipped Cargo Liner
Doors
Front & Rear Full Doors
Electronic Power Steering
Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel with Tilt and Telescoping Adjustment; DYNAMIX DV with Integrated EPS Modes and Ride Command Push Button Controls
Hitch Type
Not Equipped
Instrumentation
RIDE COMMAND™ 7” Glove-Touch Display: Digital Instrumentation, Built-In GPS, Mapping, Vehicle-to-Vehicle with *Group Ride, Follow the Leader, & Messaging. Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable With Optional Sena Headsets, Rockford Fosgate Premium Audio (Including 2 Tweeters, 2 Front & 2 Rear Speakers, and External 400W Amp) Dual-sweep Analog Dials w/ 4 in LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator
Lighting
Signature White LED, Low/High & Red LED Tail / Brake Lights; Front, Rear, and Interior Accent Lighting
Other Standard Features
High Output 1700W Charging System, Polaris Pulse System, In-Dash Charge Port, 1 front DC Accy ports, 1 rear DC Accy port, Polaris P.A.S.S., Painted Aluminum Roof, Colored Toe Link, Colored front bumper, Hood Scoop, Mud and Rock Guards, User Selectable Throttle Modes (Sport, Rock, & Race)
Seat Type
Cut & Sew Front Bolstered Bucket Seats with 4-way adjustability (including 6" front to back toolless seat sliders with tilt adjustability) and Retractable Click-6 Harnesses, Rear Stadium style seating with non-retractable 6-point harnesses
Tires / Wheels
Front Tires
32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7
Rear Tires
32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7
Wheels
Painted Cast Aluminum Rim with 5-Lug Pattern
Suspension
Electronic Suspension Control System
Dynamix DV with Selectable Ride Modes: Comfort, Rock, Track, Baja
Front Shocks
FOX 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound)
Front Suspension
Light Weight Boxed Dual A-Arm with 3 piece Stabilizer Bar and 27.0" (68.6 cm) Usable Travel, 22.25" (56.5 cm) Wheel Travel, Unitized Hubs
Rear Shocks
FOX 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound)
Rear Suspension
Boxed Trailing Arm with Toe Link, High-Clearance Radius Rods, and 3 piece Stabilizer Bar and 29.0" (73.7cm) Usable Travel, 24.5" (62.2 cm) Wheel Travel, Unitized Hubs
225
HP
74"
WIDTH
16"
CLEARANCE
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
