RANGER XP 1000 NorthStar Edition Premium Polaris Pursuit Camo Specifications

Find specifications below for the 2025 Polaris RANGER XP 1000 NorthStar Edition Premium Polaris Pursuit Camo UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar 4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93 x 138 x 32 cm)
Box Capacity
1000 lbs (454 kg) CA Models: 600 lbs (272 kg)
Estimated Dry Weight
1,913 lb (868 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14 in (36 cm)
GVW
3600 lbs (1633 kg)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver

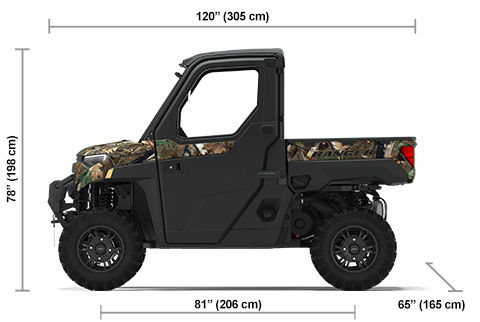

Overall Vehicle Size (L x W x H)
120 x 65 x 79 in (305 x 165 x 201 cm)
Payload Capacity
1275 lbs (578 kg) CA Models: 1100 lbs (499 kg)
Person Capacity
3
Water Fording Height
Equal to the Floorboards
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Standard
Audio System
Not Equipped
Cargo System
Lock & Ride®
Color / Graphics
Polaris Pursuit Camo
Electronic Power Steering
High Output EPS
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet, USB Charge Port, Automatic Speed Limiting in 2 mph increments starting at 16 mph to max speed.
Lighting
Dual LED Headlights, 1250lm Low Beam, 2300lm High Beam, Dual LED Tail Lights
Other Standard Features
Premium Pro-Shield Cab w/ Roof; Doors with Crank Windows; Fixed Glass Windshield with Wiper; Rear Glass Panel; Factory-Installed Heat, AC, Defrost; Rearview Mirror; Premium Steering Wheel and Interior Accents; NorthStar Tailgate Badge; Front Bumper with Integrated Winch, Plow & LED Mounts; Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding; Polaris HD 4500 lb Synthetic Rope Winch with Autostop and Wireless Remote; Polaris Pulse Electrical System (6-Position) Underhood Busbar and 6-Position Roof Busbar; 12V Accessory Outlet; Battery Trickle-Charging Outlet; USB Outlet
Tilt Steering
Standard

Tires / Wheels

Front Tires
29 x 9-14; PRO ARMOR X-TERRAIN
Rear Tires
29 x 11-14; PRO ARMOR X-TERRAIN
Tire Ply Rating
8-Ply Rated
Wheels
Aluminum

Suspension

Front Suspension
Dual A-Arm 11 in (27.9 cm) Travel
Rear Suspension
Dual A-Arm, IRS 11 in (27.9 cm) Travel
Turning Radius
160 in (406 cm)
82
HP
65"
WIDTH
14"
GROUND CLEARANCE
