RANGER XP 1000 Waterfowl Edition Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft
Dimensions
Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lbs (453.6 kg)
Dry Weight
1,661 lbs (753 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14 in (35.5 cm)
GVW
3,600 lbs
Hitch Towing Rating
2,500 lbs (1134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver

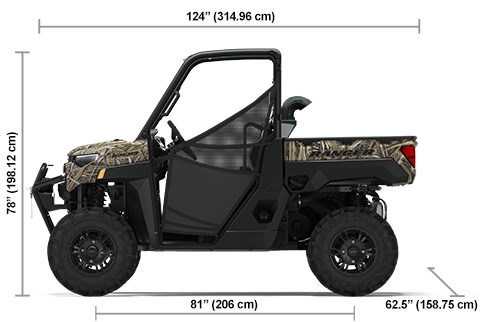

Overall Vehicle Size (L x W x H)
124 x 62.5 x 78 in. (315 x 159 x 198 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Person Capacity
3
Water Fording Height
Equal to the Seat Base Level
Wheelbase
81 in (206 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission
Additional Specifications
Adjustable Driver Seat
Standard
Cargo System
Lock & Ride®
Color / Graphics
Waterfowl Hunt Camo
Electronic Power Steering
Standard
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 2 DC Outlets
Lighting
Dual LED Headlamps, 1250lm Low Beam, 2300lm High Beam, Dual LED Taillamps
Other Standard Features
Polaris HD 4,500 Lb. Synthetic Rope Winch with Wireless Remote, Arched A-Arms, Snorkel Intake and Clutch Ducting, Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System (6 position), Standard In-Dash SAE Charge Port
Tilt Steering
Standard
Tires / Wheels
Front Tires
29 x 10-14; Pro Armor Mud XC
Rear Tires
29 x 10-14; Pro Armor Mud XC
Tire Ply Rating
10 Ply Rated
Wheels
14 in Black Aluminum
Suspension
Front Suspension
Independent, Arched Lower A-Arms, 10 in (25.4 cm) of Travel
Rear Suspension
Independent, Arched Lower A-arms, 10" (25.4 cm) of Travel
Turning Radius
13.3 ft
82
Horsepower
3
Person Capacity
14"
Ground Clearance
