Polaris XPEDITION ADV Ultimate Storm Blue Specifications

Find specifications below for the 2024 Polaris XPEDITION ADV Ultimate Storm Blue side by side. Specs include hitch type, towing capacity, payload capacity, engine type, horsepower, ground clearance, drive system type, fuel capacity, suspension, instrumentation, lighting, bed box dimensions and capacity, cargo system and wheels and tires.

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
N/A
Engine Type
ProStar 1000 Gen 2 4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
114 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
36.2 x 47.25 x 13.38 in (92 x 120 x 34 cm)
Box Capacity
600 lb (272 kg) Bed
Curb Weight
2238 lbs. (1015 kg); California 2249 lbs. (1020 kg)
Dry Weight
2117 lbs. (960 kg); California 2128 lbs. (965 kg)
Fuel Capacity
12.5 gal (47.3 L)
Ground Clearance
14 in (35.6 cm)
Hitch Towing Rating
2,000 lb (907 kg)
Hitch Type
Standard / 2 in (5.08 cm) Receiver

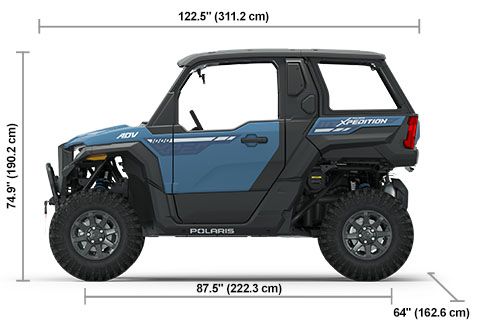

Overall Vehicle Size (L x W x H)
122.5 x 64 x 74.9 in (311.1 x 162.5 x 190.2 cm)
Payload Capacity
1030 lbs. (467 kg)
Person Capacity
2
Stance
64 in (162.56 cm)
Wheelbase
87.5 in (222.2 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Audio System
JBL Trail Pro 4100
Cargo System
Lock & Ride MAX
Electronic Power Steering
High Output EPS
Ingress / Egress
Half Doors Standard
Instrumentation
Driver Forward Information Center w/ 4 in Color Display + Rotary Speedometer & Tachometers and Center Dash 7 in Touchscreen w/ Ride Command Technology
Lighting
LED Headlight w/ Accent & LED Taillights
Other Standard Features
POLARIS HD 4500 LB Winch w/ Rope, Rubber stopper & Aluminum Fairlead, AutoStop & Plow Mode, Front Bull Bumper, ProFit Sport Roof, Convex Rear View Mirror, JBL Trail Pro 4100 Audio
Seat Type
Bolstered Bucket Seats with Driver Seat Slider
Steering
Tilt & Telescoping
Water Fording Height
28 in (71.5 cm)

Tires / Wheels

Front Tires
30 x 10-15; Pro Armor Crawler XP
Rear Tires
30 x 11-15; Pro Armor Crawler XP

Suspension

Front Shocks
FOX 2.0 Podium QS3 with Position Sensitive Spiral technology
Front Suspension
Long Travel, High Clearance Dual A-Arm with Stabilizer Bar, 14 in (35.6 cm) Travel
Rear Shocks
FOX 2.5 Podium QS3 with Position Sensitive Spiral technology
Rear Suspension
Long Travel, High Clearance Dual Arm IRS with Stabilizer Bar, 15 in (38.1 cm) Travel
64''
WIDTH
114
HP
14''
GROUND CLEARANCE
