Your vehicle has a low-maintenance battery. Always keep battery terminals and connections free of corrosion. If cleaning is necessary, remove the corrosion with a stiff wire brush. Wash with a solution of one tablespoon baking soda and one cup water. Rinse well with tap water and dry off with clean shop towels. Coat the terminals with dielectric grease or petroleum jelly after cleaning.
Notice: If more amperage is required for high electrical loads, an additional battery can be added.
Battery Removal
To remove the battery, do the following:
1. Ensure the key switch is set to OFF position before removing the battery.
2. Remove the driver’s seat.
- Pull up on the seat latch lever located under the front edge of the seat.
- Tilt the seat forward.
- Lift the seat upward to remove it from the vehicle.
3. Disconnect the black (negative) battery cable first, and secure away from the battery terminals (1).
4. Disconnect the red (positive) battery cable (2).
5. Remove the two screws (3) securing the battery hold-down strap.
6. Remove the battery hold-down strap (4).
7. Lift the battery out of the vehicle.
Models with Two Batteries
Some Pro R models are equipped with two batteries. On models equipped with two batteries, do the following:
1. Ensure the key switch is set to OFF position before removing the battery.
2. Remove the driver’s seat.
- Pull up on the seat latch lever located under the front edge of the seat.
- Tilt the seat forward.
- Lift the seat upward to remove it from the vehicle.
3. On the right-most battery, remove the battery terminal post (1) to disconnect the NEGATIVE (–) black battery cable from the battery. Secure the cable away from the battery terminals.
4. On the left-most battery, remove the battery terminal post (2) to disconnect the NEGATIVE (–) black battery cable from the battery. Secure the cable away from the battery terminals.
5. On the right-most battery, remove the battery terminal post (3) to disconnect the POSITIVE (+) red battery cable.
6. On the left-most battery, remove the battery terminal post (4) to disconnect the POSITIVE (+) red battery cable.

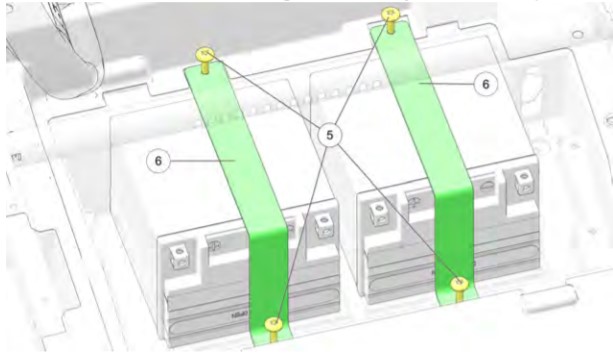

7. Remove the four screws (5) securing the two battery hold-down straps.
8. Remove the two battery hold-down straps (6).
9. Lift the batteries out of the vehicle.
Battery Installation
The battery is part number 4014609. Notice: Using a new battery that has not been fully charged can damage the battery and result in a shorter life. It can also hinder vehicle performance. Follow the instructions in the Battery Charging section of your Owner's Manual before installing the battery.
1. Ensure the key switch is set to the OFF position before installing the battery.
2. Remove the driver’s seat.
- Pull up on the seat latch lever located under the front edge of the seat.
- Tilt the seat forward.
- Lift the seat upward to remove it from the vehicle.
3. Place the battery in the battery holder.
4. Place the battery hold-down strap (1) across the battery.
5. Install the two screws (2) securing the battery hold-down strap. Torque the hold-down strap fasteners to 53 in-lbs (6 Nm).
6. Coat the terminals with dielectric grease or petroleum jelly.
7. Connect and tighten the POSITIVE (+) red cable (3).
8. Connect and tighten the NEGATIVE (-) black cable (4). Torque the fasteners to 30 in-lbs (7 Nm).
9. Verify that cables are properly routed.
10. Reinstall the seat.
Models with Two Batteries
On models equipped with two batteries, do the following:
1. Ensure the key switch is set to OFF position before installing the battery.
2. Remove the driver’s seat.
- Pull up on the seat latch lever located under the front edge of the seat.
- Tilt the seat forward.
- Lift the seat upward to remove it from the vehicle.
3. Place both of the batteries in the battery holder.
4. Place the battery hold-down strap (1) across the battery.
5. Install the four screws (2) securing the two battery hold-down straps. Torque fasteners to 53 in-lbs (6 Nm).
6. Coat the terminals with dielectric grease or petroleum jelly.
7. On the left-most battery, connect and tighten the POSITIVE (+) red cable (3).
8. On the right-most battery, connect and tighten the POSITIVE (+) red cable (4).
9. On the left-most battery, connect and tighten the NEGATIVE (-) black cable (5).
10. On the right-most battery, connect and tighten the NEGATIVE (-) black cable (6). Torque all terminal fasteners to 30 in-lbs (7 Nm).
11. Verify that cables are properly routed.
12. Reinstall the seat.
