SPORTSMAN 850 TRAIL CRIMSON METALLIC SPECIFICATIONS

Find specifications below for the 2025 Polaris Sportsman 850 Trail Crimson Metallic ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

Engine & Drivetrain

Active Descent Control
Equipped
Cooling
Liquid
Cylinders Displacement
2 / 850cc
Drive System Type
One Touch On-Demand AWD/2WD
Engine Braking System (EBS)
Equipped
Engine Type
ProStar 4-Stroke SOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection / 400 CCA
Horsepower
78 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting

Dimensions

Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
864 lbs (392 kg)
Front/Rear Rack
120 lb (55 kg)/240 lb (110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
12 in (30.5 cm)
Hitch Tow Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lb (261 kg)
Person Capacity
1
Seat Height (Laden)
37 in (94 cm)
Wheelbase
53 in (134.6 cm)

Brakes

Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Additional Specifications

Cargo System
Lock & Ride, 4 Gal (15 L) Front Dry Storage 2 Gal (8 L) Rear Storage
Electronic Power Steering
Multi Select EPS
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
LED POD, LED Bumper Lights, Dual LED Brake lights/Taillights
Other Standard Features
3,500 lb. Polaris HD Winch with Synthetic Rope, Front Ultimate Series Bumper, Rear Ultimate Series Bumper, Cut and Sew Seat, In Pod Battery Charge Port, Painted Plastics, Painted Springs, PIN Activated Security System (P.A.S.S.), Fender Flares, 6 Moveable Tie-Down Points

Tires / Wheels

Front Tires
27 X 9 Pro Armor X-Terrain
Rear Tires
27 X 11 Pro Armor X-Terrain
Wheels
14 in. (35.6 cm) Aluminum

Suspension

Front Suspension
Sealed High Clearance Arched Dual A-Arm 9" (22.9 cm) Travel
Rear Suspension
Sealed High Clearance Arched Dual A-Arm, Rolled IRS, 10.25" (26 cm) Travel
78
HP
47.6"
WIDTH
12"
GROUND CLEARANCE

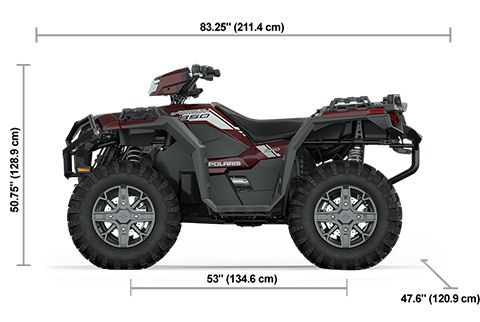

Side view of the Crimson Metallic 2025 Polaris Sportsman 850 Trail with height, width and length dimensions.
