RANGER XP Kinetic Ultimate Polaris Pursuit Camo Specifications

Find specifications below for the 2024 Polaris RANGER XP Kinetic Ultimate Polaris Pursuit Camo UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Change Model

Engine & Drivetrain

Battery System
Lithium Ion, 29.8 kWh Nominal
Cooling
Active Air and Liquid
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Regenerative Braking
Horsepower
110 HP
Motor Type
Internal Permanent Magnet AC Motor
Torque
140 LB-FT
Transmission/Final Drive
Gates Synchronous Belt H/L/N/P (Electronic Forward/Reverse), Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,250 lb (567 kg)
Cargo System
Lock & Ride®
Estimated Dry Weight
1,982 lbs. (899 kg)
Ground Clearance
14 in (35.6 cm)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver

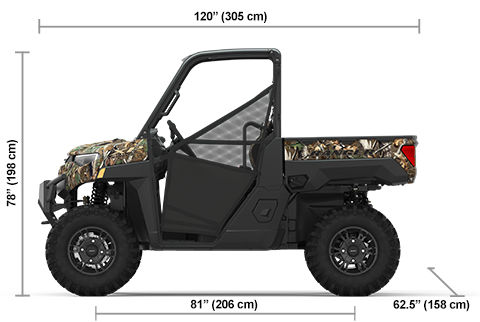

Overall Vehicle Size (L x W x H)
120 x 62.5 x 78 in. (305 x 158 x 198 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Person Capacity
3
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Standard
Charging Kit Included (EVSE)
J1772, Combined Level 1 / Level 2 Mobile
Color / Graphics
Icy White Pearl, Polaris Pursuit Camo
Electronic Power Steering
Standard
Estimated Range
80 Miles
Instrumentation
Center Mounted 7" Glove Touch Display with EV Infotainment (includes Range Remaining, Battery State of Charge, Charging Status, Launch Indicator, System Diagnostics and more), Speed Limiting, Plow Mode, *Group Ride, *GPS Navigation, Air Temp., Bluetooth, AM/FM Radio, Driver's Side Dual-sweep Analog Dials w/ 4" Multi-Color LCD Rider Information Center: Power Use and Regen %, Battery State of Charge %, Range Remaining, Charging Rate, Battery Temperature, Motor Temperature, Accessory Voltage, Speedometer, Odometer, Tripmeter, Gear Indicator, Service Indicator and Codes, Programmable Service Intervals, Seat Belt Reminder, User Selectable Backlighting & Brightness, Clock
Lighting
Dual LED Headlamps, 1250lm low beam, 2300lm high beam, LED Front Accent Light with Charge Indicator, Dual LED Taillamps
Onboard Battery Charger
6 kW
Other Standard Features
Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System (6 position), DC Outlet, Dual USB Port, Cargo Box Located 12V SAE Port with In-Dash On/Off Switch, In Dash Speakers, Rear Camera, *Connectivity with Ride Command + App
RIDE COMMAND+
Factory-Installed
Tilt Steering
Standard

Tires / Wheels

Front Tires
29 x 9-14; PRO ARMOR X-TERRAIN
Rear Tires
29 x 11-14; PRO ARMOR X-TERRAIN
Tire Ply Rating
8 Ply Rated
Wheels
14 in. (35.6 cm) Aluminum

Suspension

Front Suspension
Dual A-Arm 10 in. (25.4 cm) Travel
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Turning Radius
13.3 ft (406.4 cm)
110
HP
3
PERSON CAPACITY
14"
GROUND CLEARANCE

*Estimated range for 3- seat RANGER XP Kinetic traveling at 25 mph with 250 lbs of cargo
