RANGER 1000 PREMIUM White Lightning Specifications

Find specifications below for the 2025 Polaris RANGER 1000 Premium White Lightning UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61 HP
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54 x 11.5 in (93.3 x 137 x 29 cm)
Box Capacity
1000 lbs (454 kg) CA Models: 600 lbs (272 kg)
Estimated Dry Weight
1,544 lb (700 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12.5 in (31.75 cm)
GVW
3600 lbs (1633 kg)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver

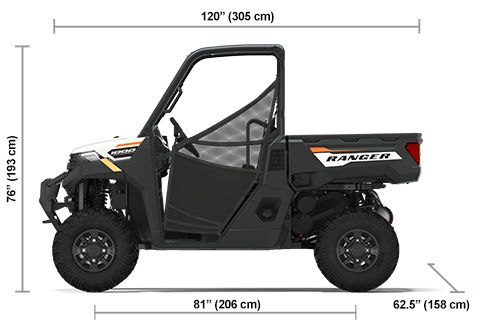

Overall Vehicle Size (L x W x H)
120 x 62.5 x 76 in (305 x 159 x 193 cm)
Payload Capacity
1500 lbs (680 kg) CA Models: 1100 lbs (499 kg)
Person Capacity
3
Water Fording Height
Equal to the Floorboards
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Standard
Audio System
Not Equipped
Cargo System
Lock & Ride®
Color / Graphics
White Lightning
Electronic Power Steering
High Output EPS
Electronic Power Steering
Standard
Instrumentation
4" LCD Rider Information Center:  User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder,  DC Outlet
Lighting
Dual LED Headlights, 600lm Low Beam, 1000lm High Beam, Dual LED Tail Lights
Other Standard Features
Polaris HD 4500 lb Synthetic Rope Winch with Autostop and Wireless Remote, Factory-Installed Poly Sport Roof, Premium Cut & Sew Bench Seat, Front Bumper with Integrated Plow & Winch Mounts, Single Latch Cab Nets, Polaris Pulse Electrical System (3 position), 12V Accessory Outlet, Battery Trickle-Charging Outlet
RIDE COMMAND+
Available as Accessory
Tilt Steering
Standard

Tires / Wheels

Front Tires
26 x 9-12; PXT 2.0
Rear Tires
26 x 11-12; PXT 2.0
Wheels
Aluminum Black Xcelerator 2.0

Suspension

Front Suspension
Dual A-Arm 10 in. (25.4 cm) Travel
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Turning Radius
160 in (406 cm)
61
HP
62.5"
WIDTH
12.5"
GROUND CLEARANCE
