RANGER CREW XP 1000 Premium Bronson Rock Smoke Specifications

Find specifications below for the 2023 Polaris RANGER CREW XP 1000 Premium Bronson Rock Smoke UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lbs (453.6 kg); California 600 lb (272.2 kg)
Estimated Dry Weight
1,894 lbs. (859 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
13 in (33 cm)
GVW
3,750 lb (1,700.9 kg)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver

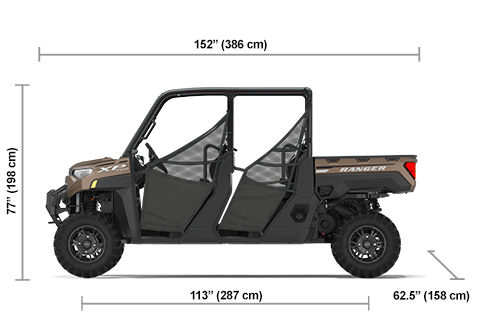

Overall Vehicle Size (L x W x H)
152 x 62.5 x 77 in. (386 x 158 x 196 cm)
Payload Capacity
1,690 lb. (767 kg); California 1,350 lb. (612.3 kg)
Person Capacity
6
Wheelbase
113 in (287 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Standard
Cargo System
Lock & Ride®
Color / Graphics
Bronson Rock Smoke
Electronic Power Steering
Standard
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 2 DC Outlets, 1 USB Charge Port
Lighting
Dual LED Headlamps 1250lm Low Beam 2300lm High Beam Dual LED Taillamps
Other Standard Features
Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System (6 position), Standard In-Dash SAE Charge Port, NFC Front Badge
RIDE COMMAND+
Available
Tilt Steering
Standard

Tires / Wheels

Front Tires
27 x 9-14; Pro Armor X-Terrain
Rear Tires
27 x 11-14; Pro Armor X-Terrain
Tire Ply Rating
8 Ply Rated
Wheels
14 in. (35.6 cm) Aluminum

Suspension

Front Suspension
Dual A-Arm 11 in (27.9 cm) Travel
Rear Suspension
Dual A-Arm, IRS 11 in (27.9 cm) Travel
Turning Radius
17 ft (518 cm)
82
HP
6
PERSON CAPACITY
13"
GROUND CLEARANCE
