RANGER CREW XP 1000 NorthStar Big Game Edition Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand AWD/2WD/ VersaTrac Turf Mode
Engine Braking System (EBS)
Engine Braking System (EBS) and Active Descent Control (ADC)
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft
Dimensions
Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lbs (453.6 kg)
Dry Weight
2,389 lbs (1084 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14 in (35.5 cm)
GVW
4,000 lbs (1814 kg)
Hitch Towing Rating
2,500 lbs (1134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver

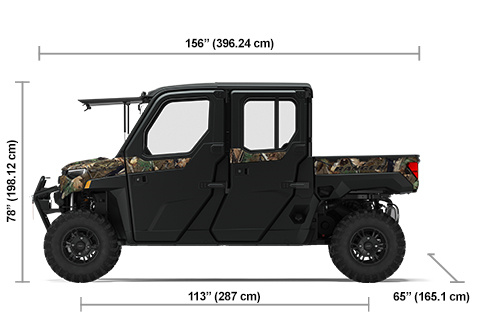

Overall Vehicle Size (L x W x H)
156 x 65 x 79.5 in. (396 x 165 x 202 cm)
Payload Capacity
1,150 lb (522 kg)
Person Capacity
6
Wheelbase
113 in (287 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission
Additional Specifications
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 3 DC Outlets
Adjustable Driver Seat
Standard
Cargo System
Lock & Ride®
Color / Graphics
Polaris Pursuit Camo
Electronic Power Steering
Standard
Lighting
Dual LED Headlamps, 1250lm Low Beam, 2300lm High Beam, Dual LED Taillamps
Other Standard Features
Polaris HD 4,500 Lb. Synthetic Rope Winch with Wireless Remote, Arched A-Arms, Nivomat Self-Leveling Suspension, Polaris Engine Braking System with Active Descent Control, Premium Pro-Shield Cab, Doors with Power Windows, Tip-Out Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Rearview Mirror, Heat, AC, Defrost, Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Northstar Ultimate Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System with 6-Position Underhood Busbar and 6-Position Roof Busbar, Standard In-Dash SAE Charge Port, In Dash Speakers, Rear Camera, 7" Glove Touch Display: Group Ride, GPS Naivigation, Bluetooth, AM/FM Radio
Tilt Steering
Standard
Tires / Wheels
Front Tires
29 x 9-14; Pro Armor X-Terrain
Rear Tires
29 x 11-14; PRO ARMOR X-TERRAIN
Tire Ply Rating
8 Ply Rated
Wheels
14" Aluminum
Suspension
Front Suspension
Independent, Arched Lower A-Arms, 10 in (25.4 cm) of Travel
Rear Suspension
Independent, Arched Lower A-arms, Nivomat Load-Adaptive, 10" (25.4 cm) of Travel
Turning Radius
17 ft
82
Horsepower
6
Person Capacity
14"
Ground Clearance
